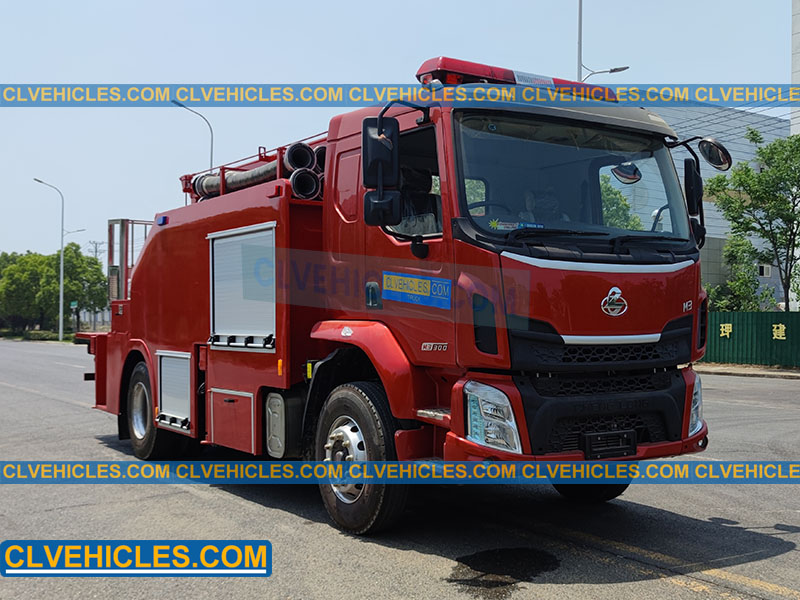

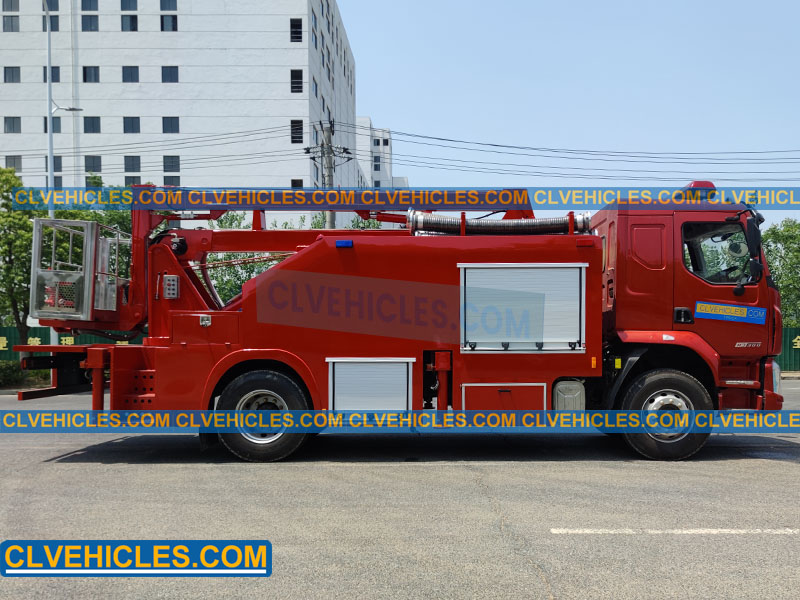

Vehicle Type: Fire Fighting truck
Number of Units: 1
Export Country: Thailand
Chassis Configuration: DONGFENG, 4*2 type, Left hand driving, Single cab, YSC06300-50 engine（300hp), 11R22.5 tires
Superstructure Configuration: 5,000 Liters water tank （tank material carbon steel），CB10/60 fire pump,  PS50 fire monitor, Aerial working platform with PS40 wireless fire monitor

This advanced firefighting and rescue vehicle combines a powerful firefighting system with a folding boom aerial work platform, designed for high-altitude firefighting operations.

1. Water tank and firefighting system
- 5-ton water tank: Made of durable Q235 carbon steel, it is durable and corrosion-resistant.
- CB10/60 fire pump: Provides high-pressure water flow for effective firefighting.
- Dual fire monitor:
- West PS50 fire monitor (mounted on the water tank)
- Additional PS40 electric fire monitor (mounted on the front of the basket) for enhanced directional control.
- Exposed water tank design: Easy maintenance and inspection.
- Standard internal connector: Compatible with fire hose system.

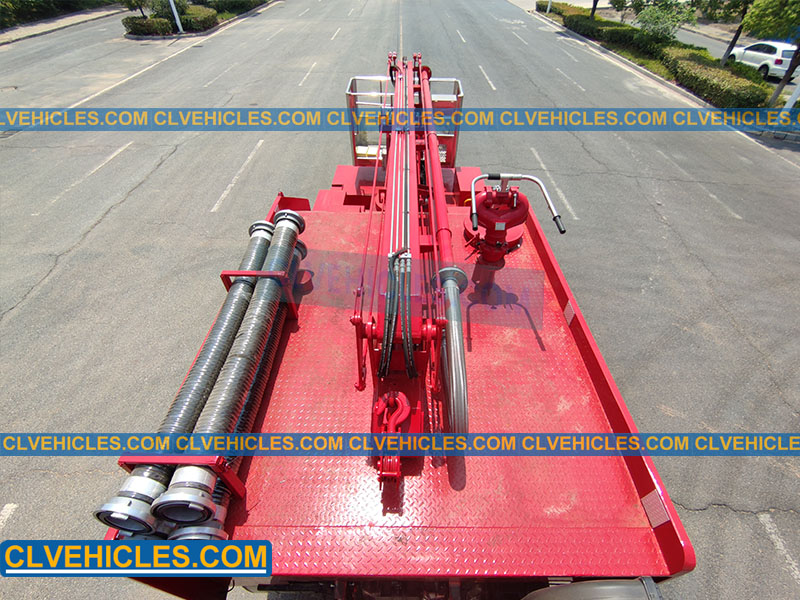

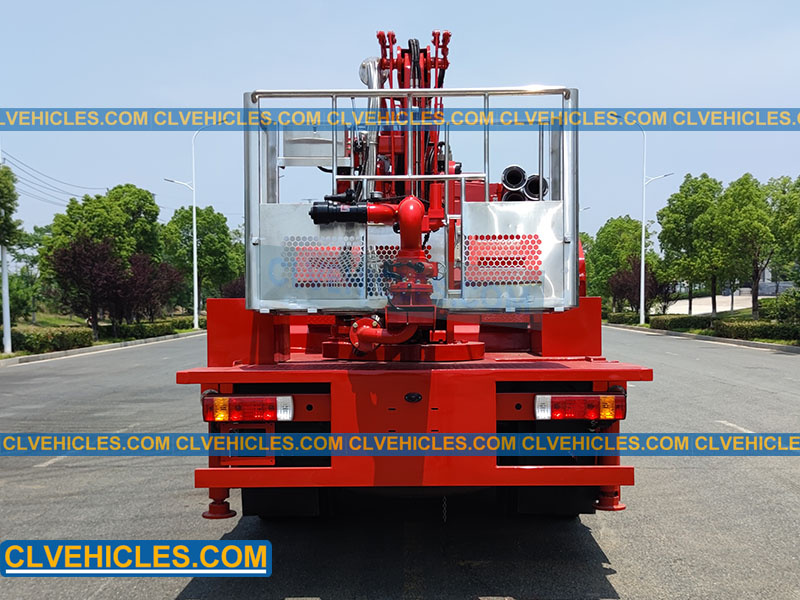

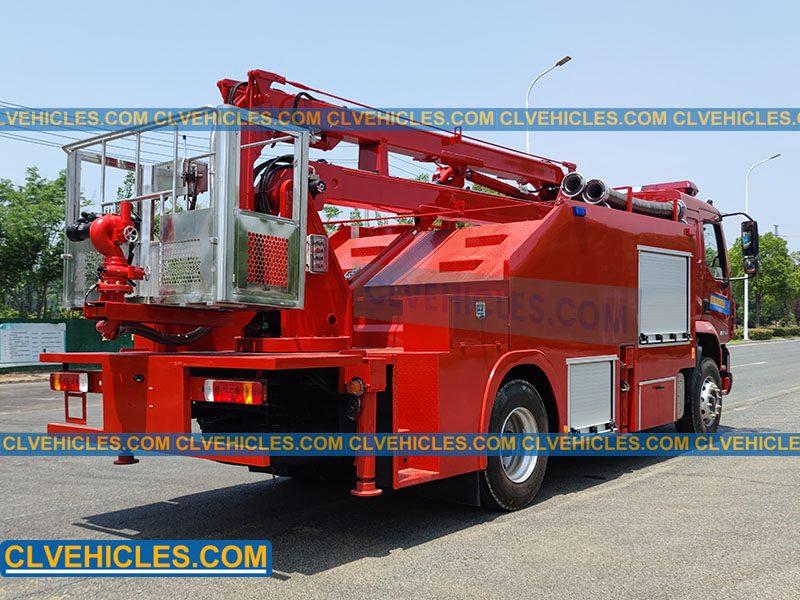

2. Aerial work platform (maximum working height 13.7 meters)
- Heavy duty reinforced structure: Supports simultaneous operation - People in the basket + fire monitor spraying water.
- Three-section boom Reinforced with fixed welded round tube for greater stability.
- Flexible metal hose connection at folding joints: Ensure uninterrupted water supply during boom movement.

3. Enhanced safety and visibility
- Long row of LED warning lights + speakers: Increase alertness in emergency situations.
- High-intensity strobe lights: Enhance visibility in low-light conditions.
- Fire red body: Standard emergency color for quick identification.

4. Chassis and cab
- Single-row cab: Optimized for personnel transportation.
- Compatible with customer-supplied chassis:
- 4,500 mm wheelbase
- 300 hp engine, powerful performance.

5. Additional equipment
- Sandwich power take-off (PTO): Efficiently distributes power between driving and firefighting systems.

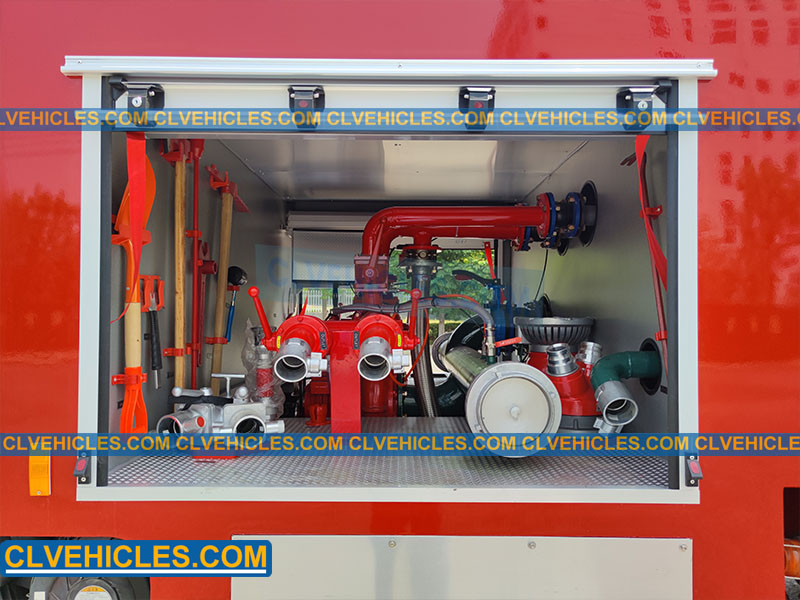

- Onboard firefighting tools: See the attached equipment list.
